Smart Digital RGBIC LED Sheet Panel Curtain - Programmable Motorized Operation DC24V 288LEDs Remote Control for Lightbox Kitchen

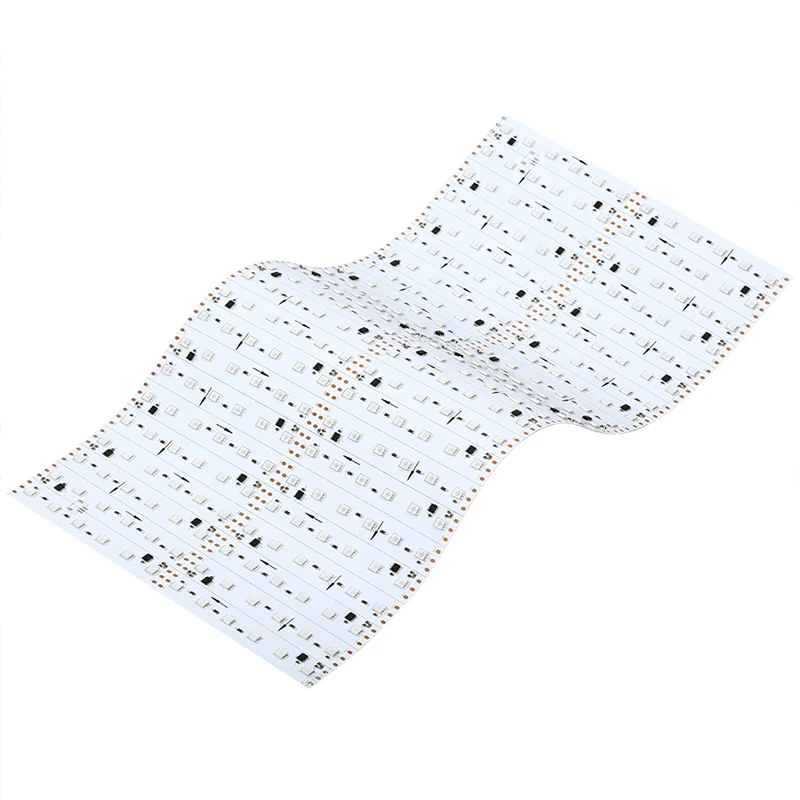

Flexible LED Sheet Light

※High color consistency, 3 Step Macadam

※High CRI, Ra>90 / Ra>95

※1800K~6500K/Red/Green/Blue/Yellow/Amber/Pink and other custom CCT available

※Dual color, multi color and addressable RGB available
※More than 50000-hour lifespan

※All of Materials Are Accord With RoHS & CE & EMC & ERP2.0 & REACH & FCC & ETL.

※As a manufacturer, we can customize different sizes, voltage, power, color temperature and color rendering index according to customers' requirements.

Flexible LED Sheet Light Parameters
Part Number	YQ-LS5050V24RGBIC
Size ( Length * Width)	480mm × 240mm

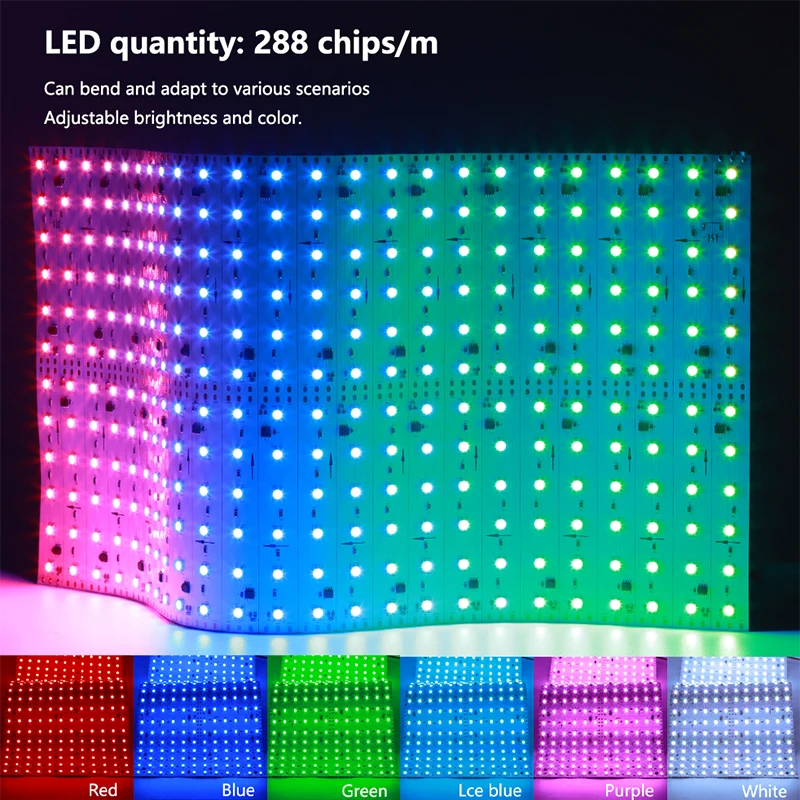

LED Quantity	288 LEDs /pcs
PCB & Color	3OZ & White board
Cutting Unit	120mm × 20mm (6LEDs)
Input Voltage	DC24V
Power & CRI（RA)	75W /pcs
Lumious Flux	High Brightness
Color Temperature	Addressable RGB / custom colours
IP Grade	IP20-non waterproof / custom IP54 nano
Operating Temperature & Beam Angle	-25 to 45 ℃ & 180 °
Cetification	CE & LVD & EMC & RoHS & REACH & ERP2.0 & FCC & ETL & BIS
LED Type	SMD5050 3in1
Package Bag Size	510mm × 300mm
Gross Weight	0.2kg per piece

Single Colour 2700K/3000K/4000K/6000K/R/G/B etc.

288LED  30W  DC24V  480mm × 240mm

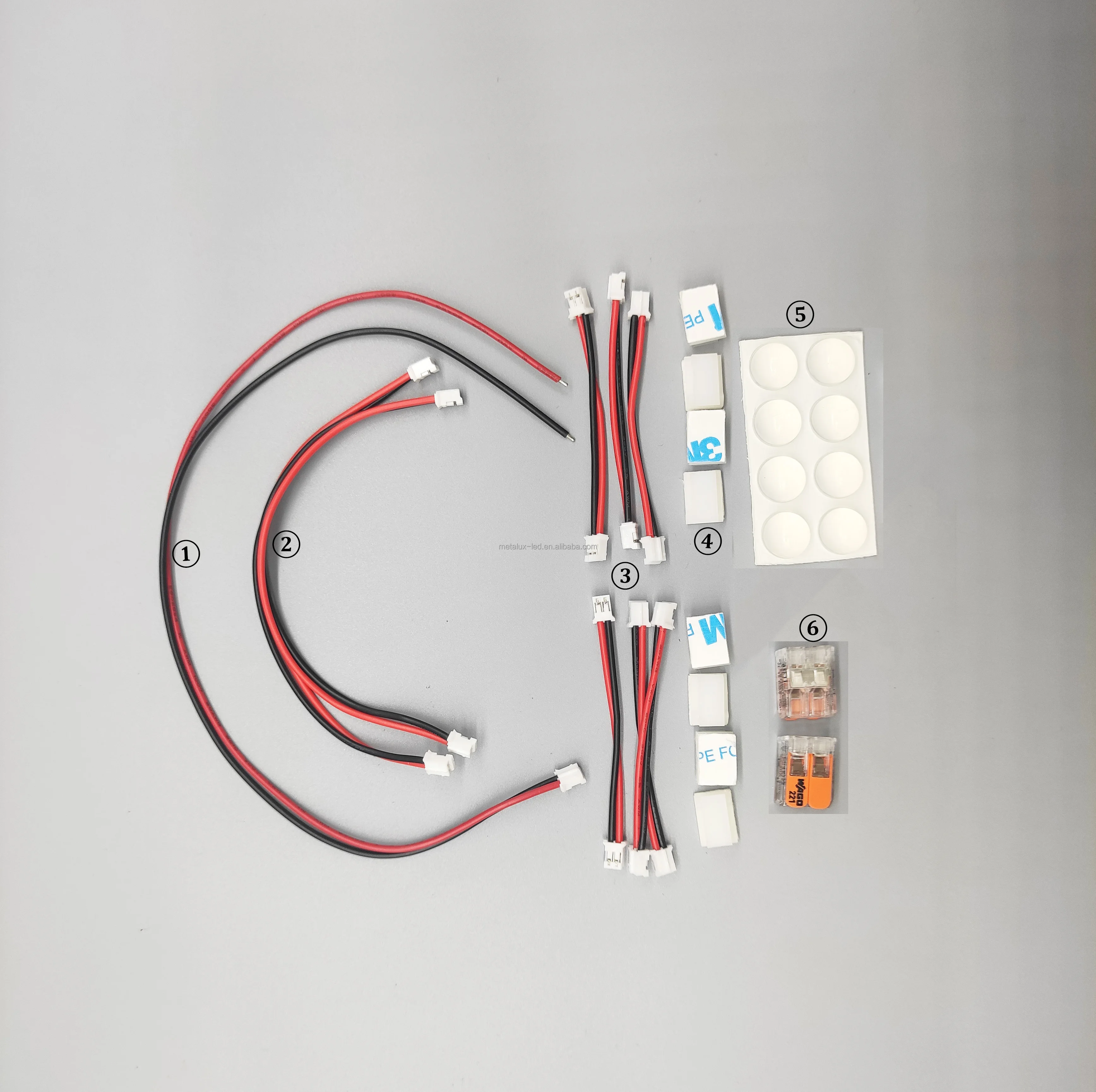

Accessories

① Power Lead

② Long Jumper Wire

③ Short Jumper Wire

④ Cable Management Clip

⑤ Stand-off Spacer

⑥ WAGO Connector

Cut

Flexible LED sheets can be cut into small units along cutting lines of different directions allowing on-site

DIY, which shortening the lead time

of custom orders.

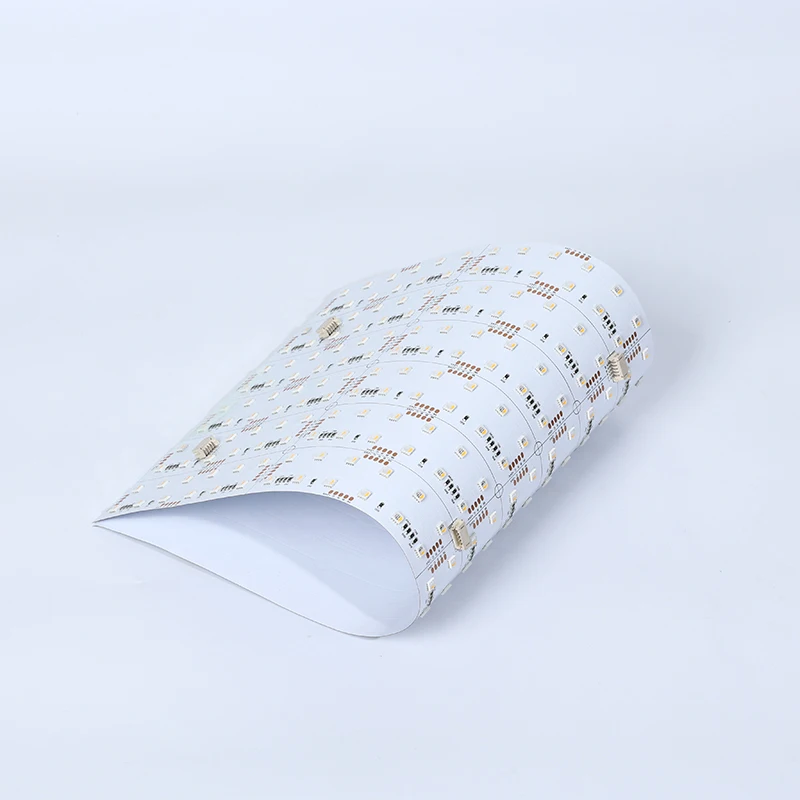

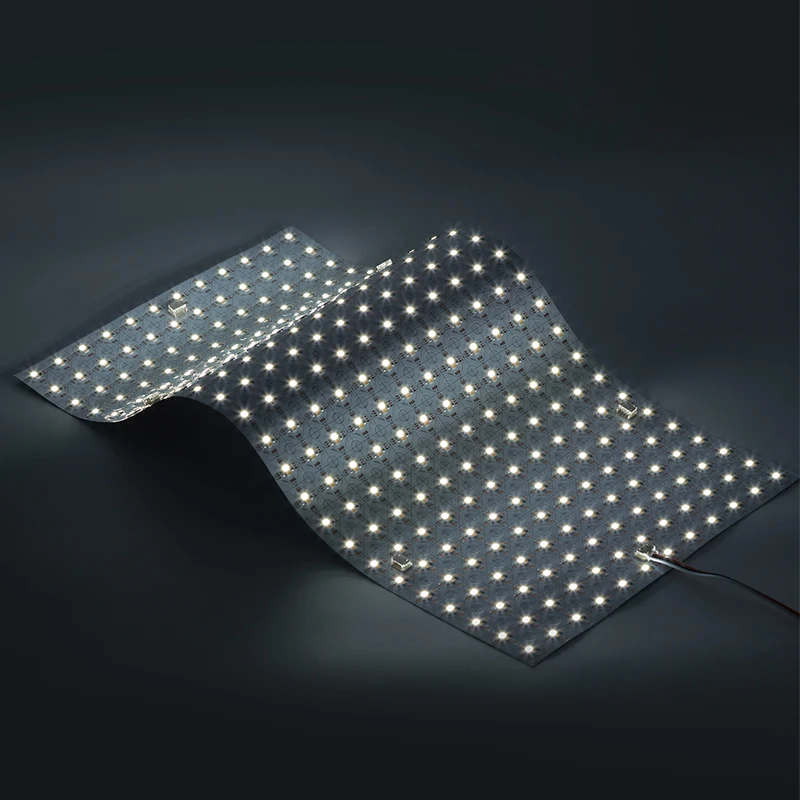

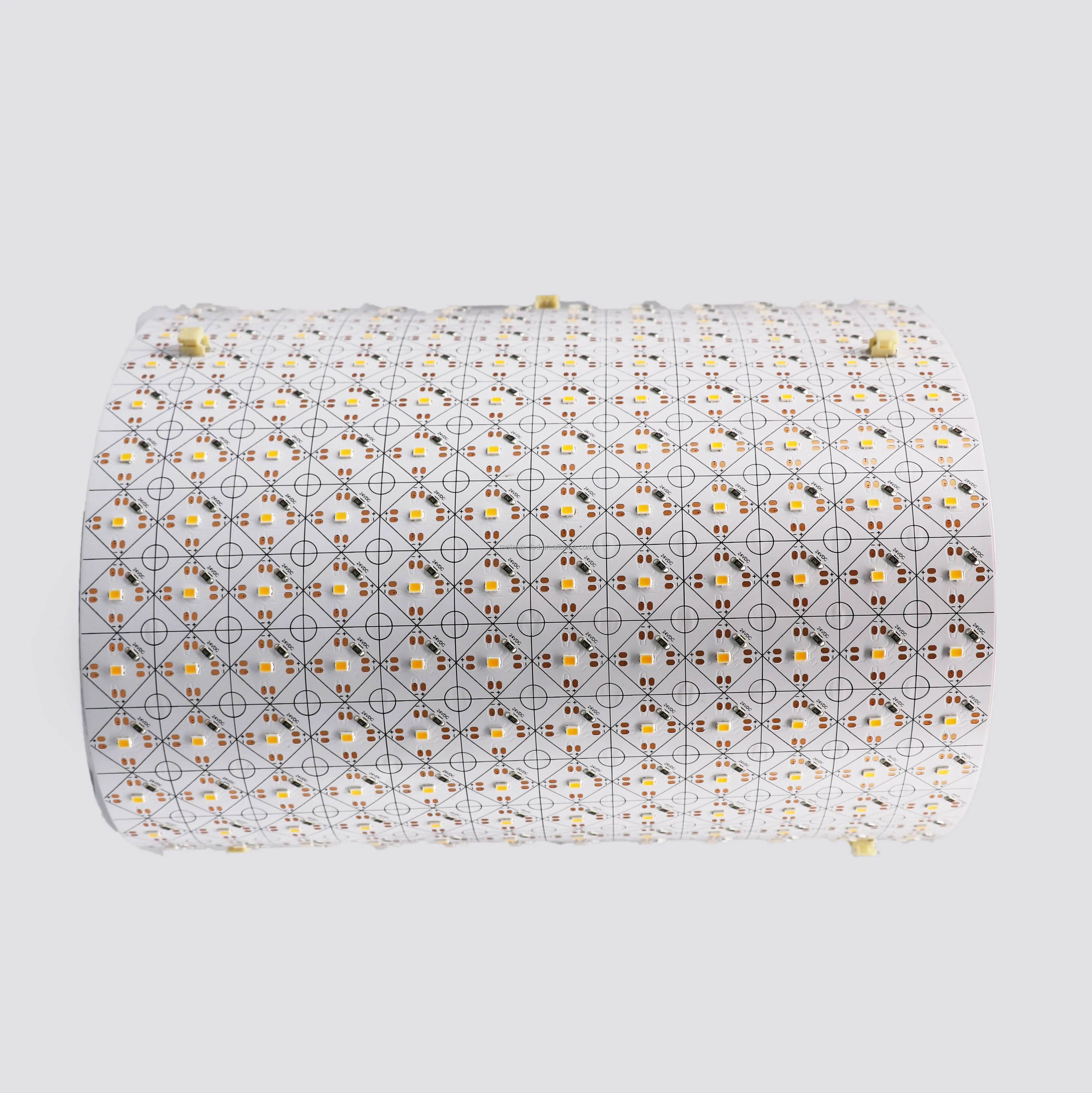

Fold

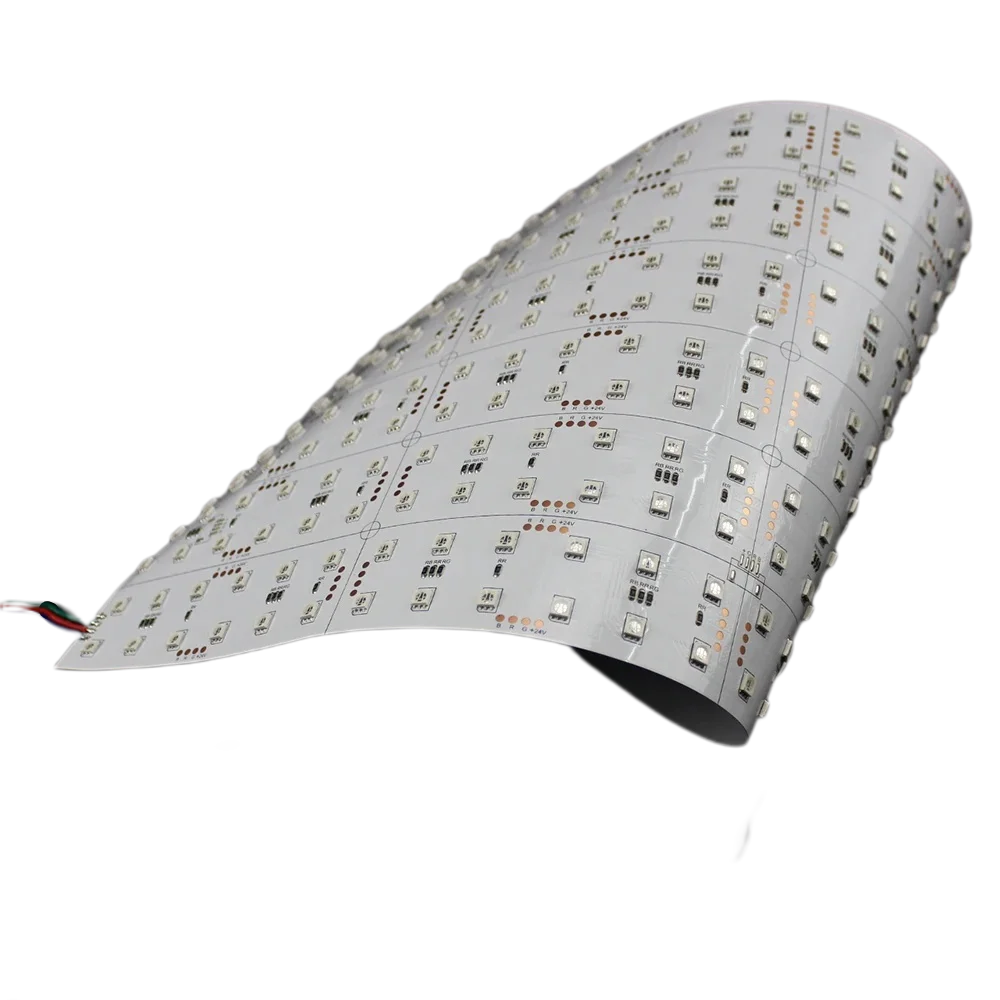

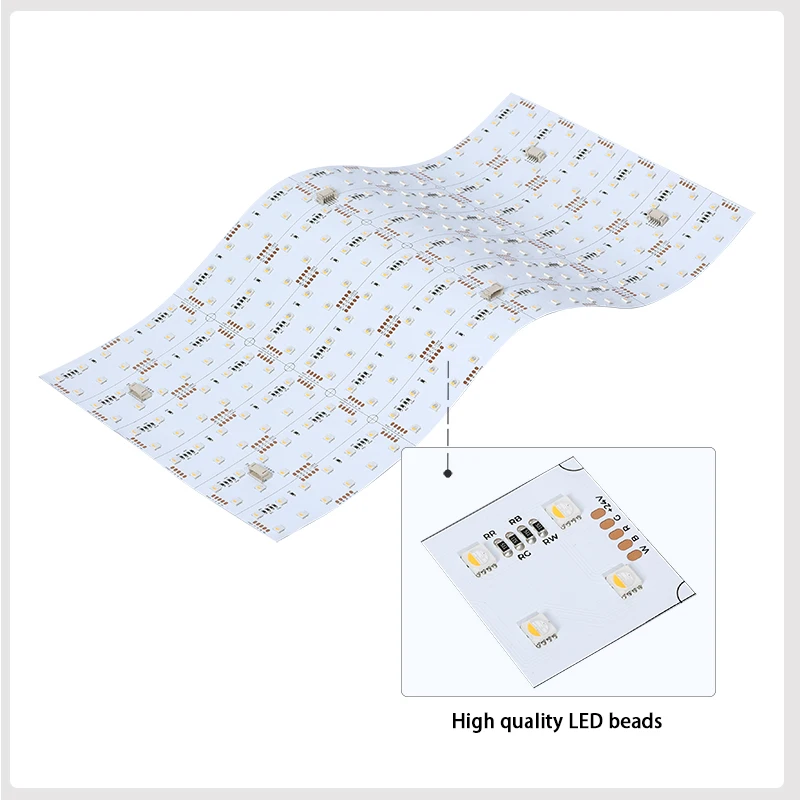

The Flexible Circuit Board (FCB) can bend along both axes and diagonally to fit various irregular shapes performing seamless and uniform backlighting effects for translucent materials.

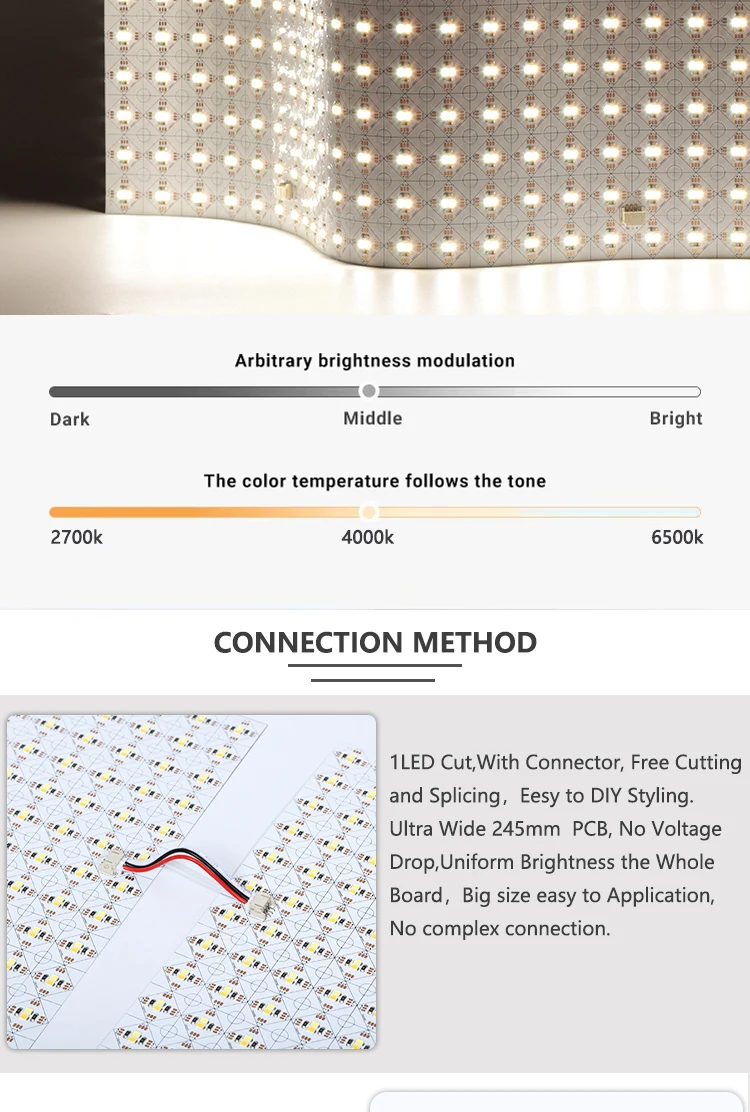

Connect

Each side of LED flexible sheets have connectors for jumper wires to interconnect quickly and easily eliminating the need to solder and thus speeding installation.

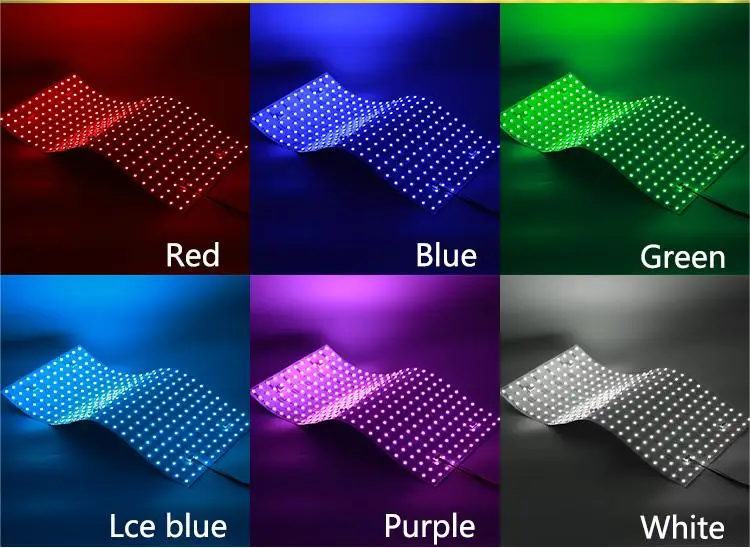

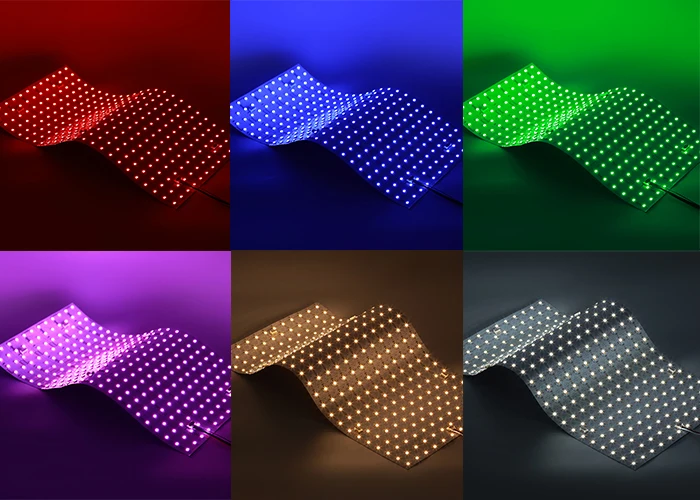

Color Temperature Customization

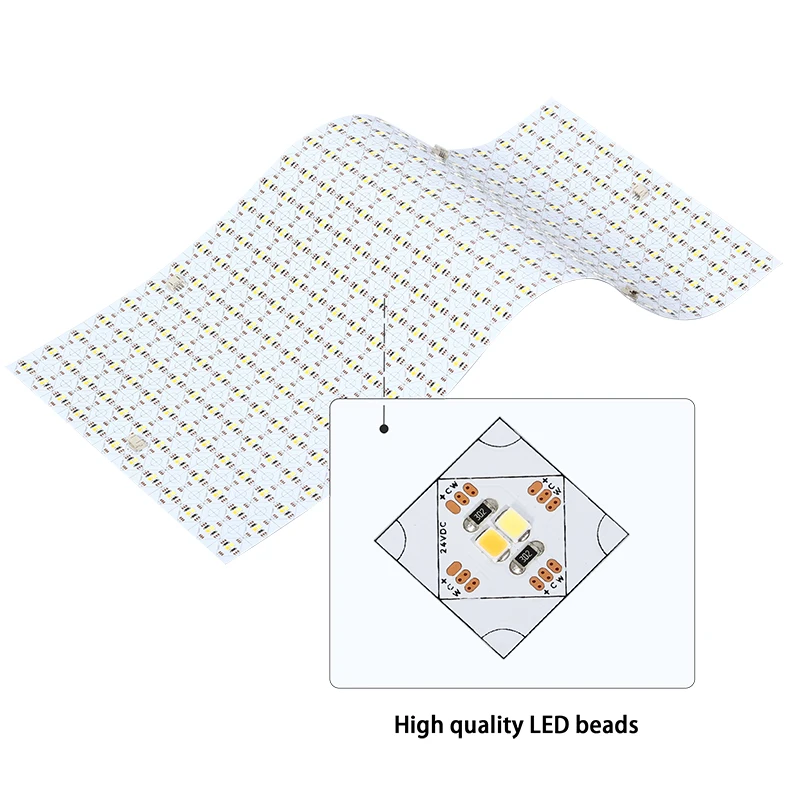

Single Colour LED Sheet

Dual Colour LED Sheet

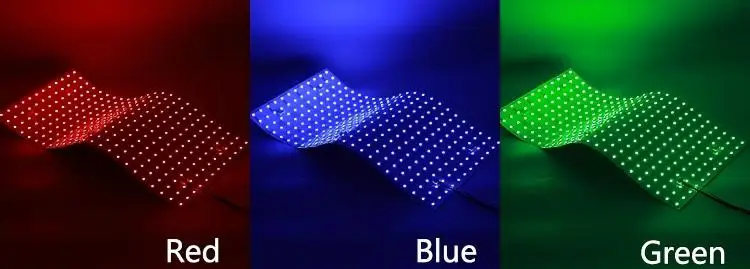

RGB LED Sheet

RGBW 4in1 LED Sheet

RGBCW 5in1 LED Sheet

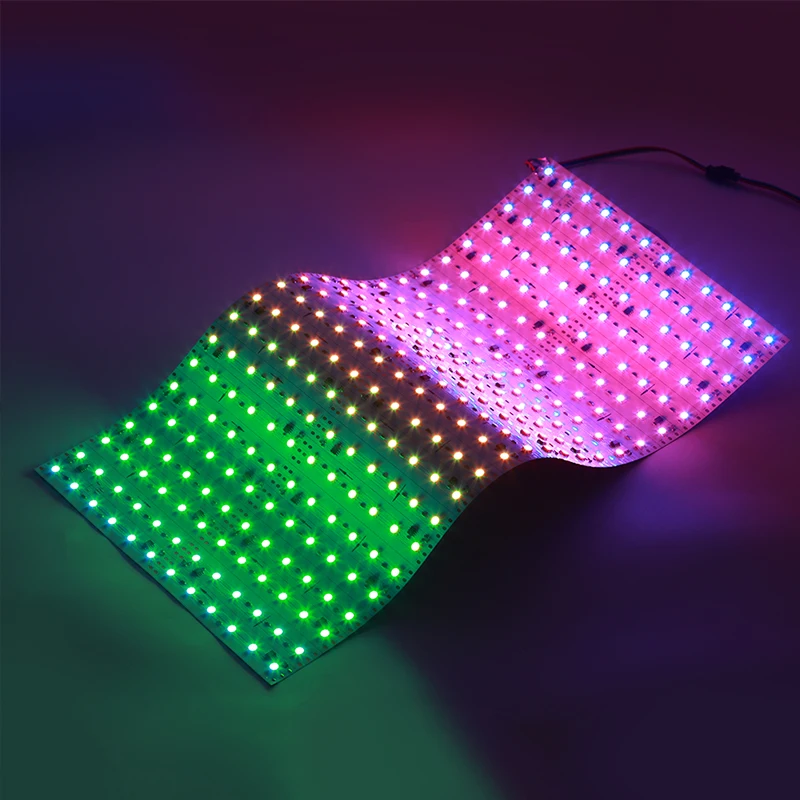

Addressable RGB LED Sheet

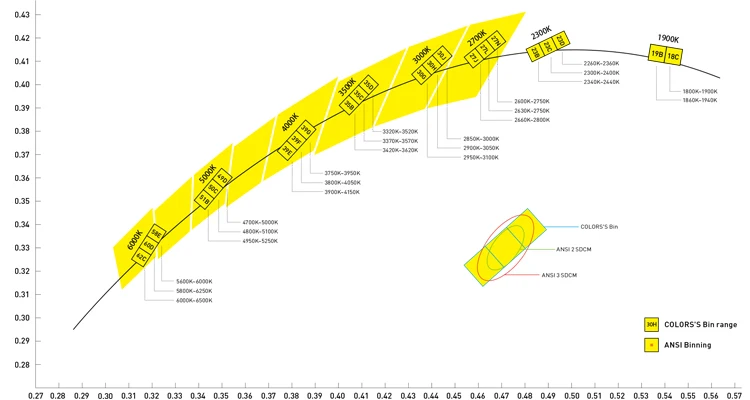

SDCM & Binning

Spectroscopic standard of Metalux LED Limited
Complying with international ANSI standard, Metalux divides every CCT into 2 or 3 bins, which is as
small as 2-step, to ensure customers to get the same color even for different orders.

SDCM <3, no visual difference between the same batch of products.

Customer-specific Bin management.
Always the same Bin for different batches.
One bin, 3-step. No visual difference forever.
